ROBINSON R44 RAVEN II START STEP BY STEP
1. Seat belt.....................FASTENED
2. Fuel shutoff valve.......... ON
3. Cyclic and collective...... FRICTION OFF
4. Now we are checking our cyclic and pedals make sure they are full travel free
5. Throttle is full travel free our collective fold down and now friction is on

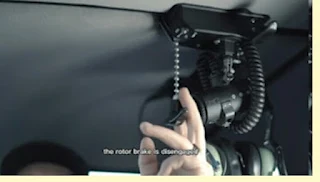

6. Rotor brake......... Disengaged
7. Circuit breakers are IN
8. Carb heat............ OFF
9. Mixture.............. Full Rich

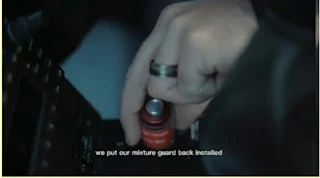

10. Mixture guard installed
11. Making sure landing light is off

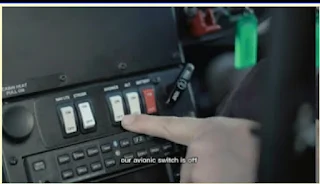

12. Avionic switch.......... off
13. Clutch......... Disengaged
14. Altimeter .....................SET
15. Hydraulic and governor switches....ON
16. Twist the throttle a couple of times to prime it
17. We are double check and make sure throttle is closed
18. We are going to yell clear and make sure the area Around the helicopter is clear
19. The battery and strobe switches.... ON
20. Ignition switch start
21. RPM 50 To 60% .......SET
22. Clutch switch engaged
23. Blades are turning in less than 5 seconds
24. Alternator and timer..... ON
25. We have oil pressure 30 seconds up to minimum of 25 PSI
26. Avionics switch...... ON
28. Checking our compass to make sure it's aligned with our directional gyro
29. Looking at our gauges we "ll rate 0
30. Altimeter........ SET
WE "ll get the actual altimeter setting when we listen to sedar city ASOS
31. Look at Carb heat gauge. Over to our RPMS
32. Make sure that. The rest our gauges all reading good and correct
33. Our attitude indicators level everything's reading straight
34. Airspeed........... 0
35. Adjust map screen
36. Flipping it to the ads B page
37. Local radio frequencies.... Check
38. Checking our weather on the ASOS Which is the automated surface observation system
39. Transponder......... TURN ON
40. Reading altitude and squawking 1200
41. Clutch light is out
42. Warm up RPM 60 to 70%

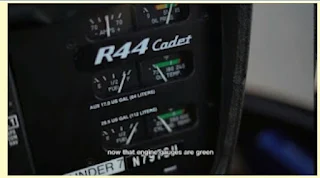

43. Make sure engine gauges are green
44. we"ll do Mag drop check at 75% RPM
45. Switch the key to the right Mag and check a 7% Max drop in 2 seconds. Then back to both. Now checking the left Mag looking for that 7% Max drop in 2 seconds on our spragg clutch check. We are going to quickly Roll the throttle..... OFF
46. Carb heat...... Check
47. Look at limit chart
48. Cyclic and collective friction... OFF
49. Hydraulic system switch....... off
50. A small little X Pattern to make sure the controls work smoothly with the hydraulics off
51. Pull on the collective it is going to be hard up easy down
And we confirm the hydraulics work with the same movements with the cyclic. And collective increasing throttle up to 80% at that point the governor will take over and take it up to 101 to 102%
53. Warning lights are out
54. Lift collective slightly reduce rpm looking for the horn and light at 97% before takeoff our RPM are at 101 to hundred and 2%.
55. The Area is clear right center and left
56. All caution lights are out
